Pushing AI Beyond Vision to Understand Construction Drawings

A blueprint for contractors, estimators, and architects.

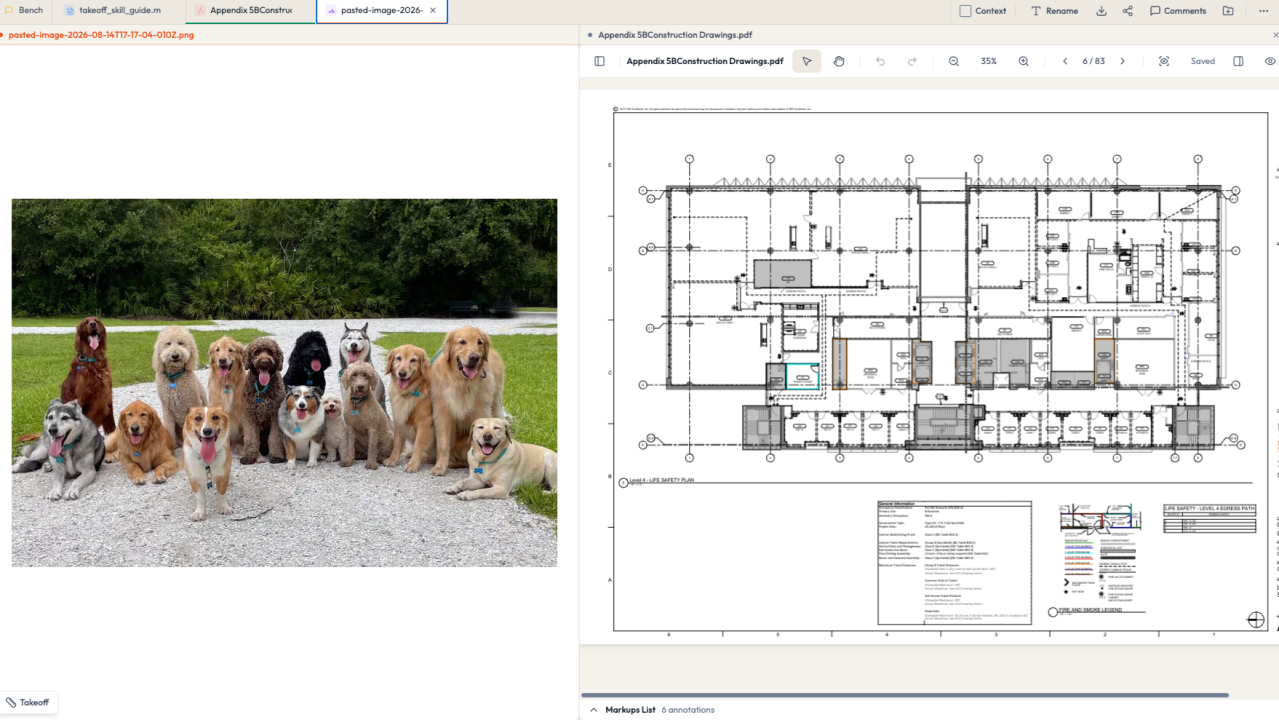

AI has gotten shockingly good at looking at photos. It can understand real-world objects—but what about drawings?

Modern multimodal AI can locate objects in a crowded image, identify their exact bounds, and classify fine-grained categories. Yet upload a 30-page construction set to a generic chatbot and ask it to count light fixtures, floor boxes, or fire dampers, and it may hallucinate numbers or miss half the symbols.

The model is not broken. The way we feed it drawings is. Standard chat workflows blindfold AI when they are applied to large-format blueprints. These four breakthroughs make dependable drawing comprehension possible.

1. The Resolution Gap: AI Is Squinting at Your Blueprints

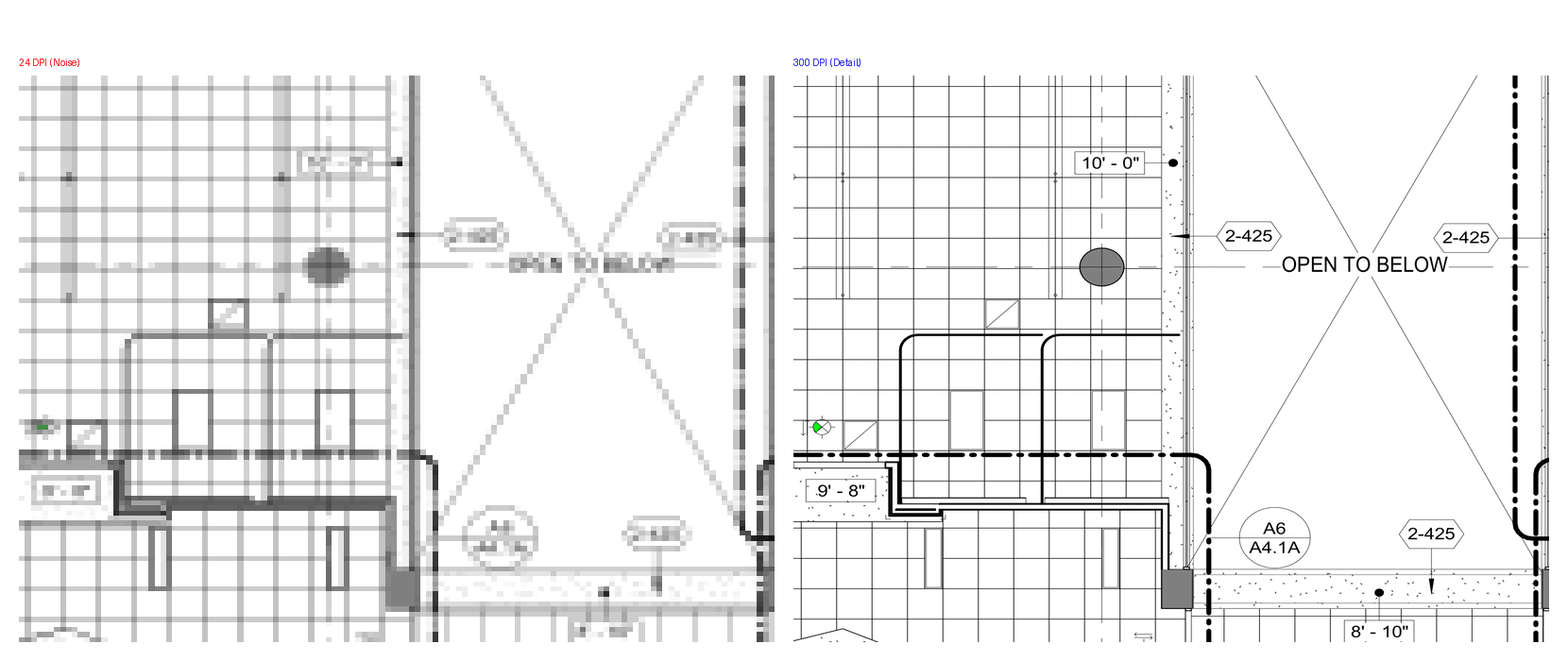

Architectural sheets are enormous—often 36 × 48 inches or 30 × 42 inches. When an entire sheet goes into an LLM prompt, it is compressed to fit an input budget. Crisp vector text turns into blurry, pixelated noise.

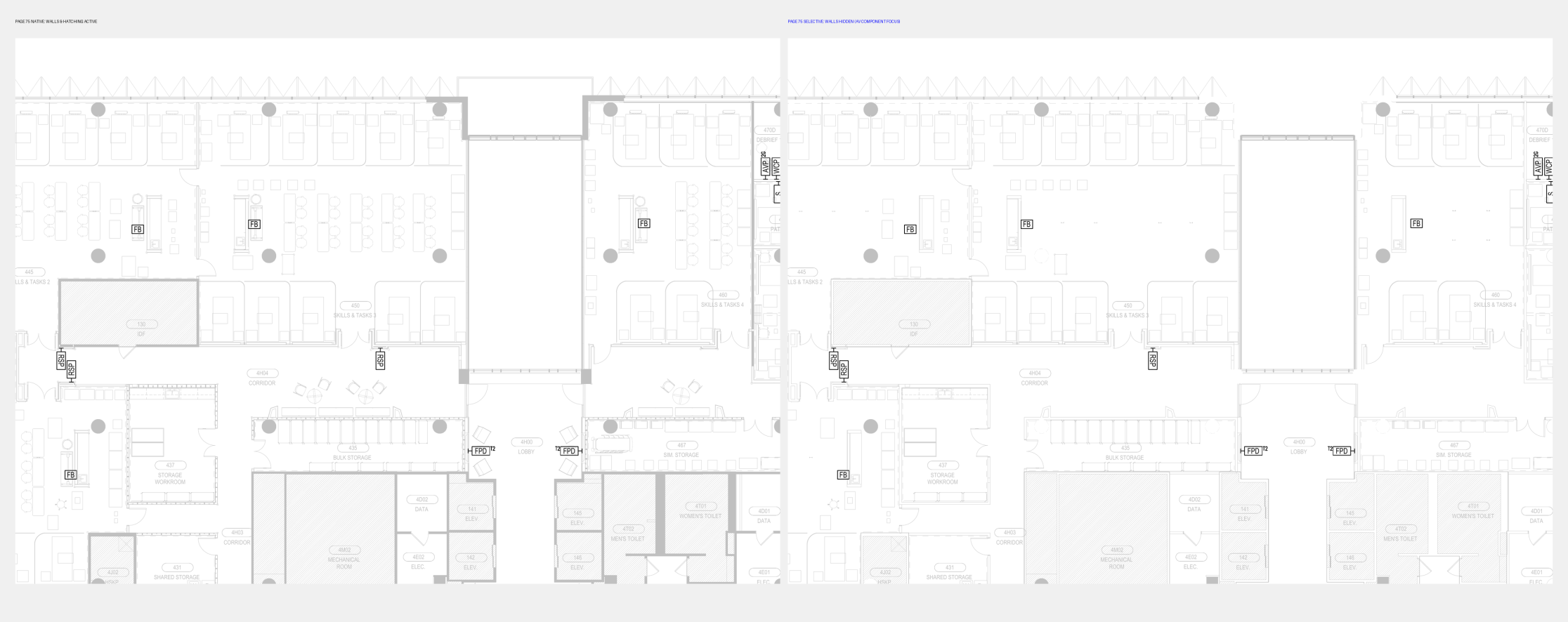

The fix: dynamic tiling. An estimator leans in, zooms, and changes focus as needed. An AI agent should do the same: request high-resolution 300-DPI crops of relevant regions, preserving dimensions, strokes, and annotations.

2. X-Ray Vision: Selective Layer Deconstruction

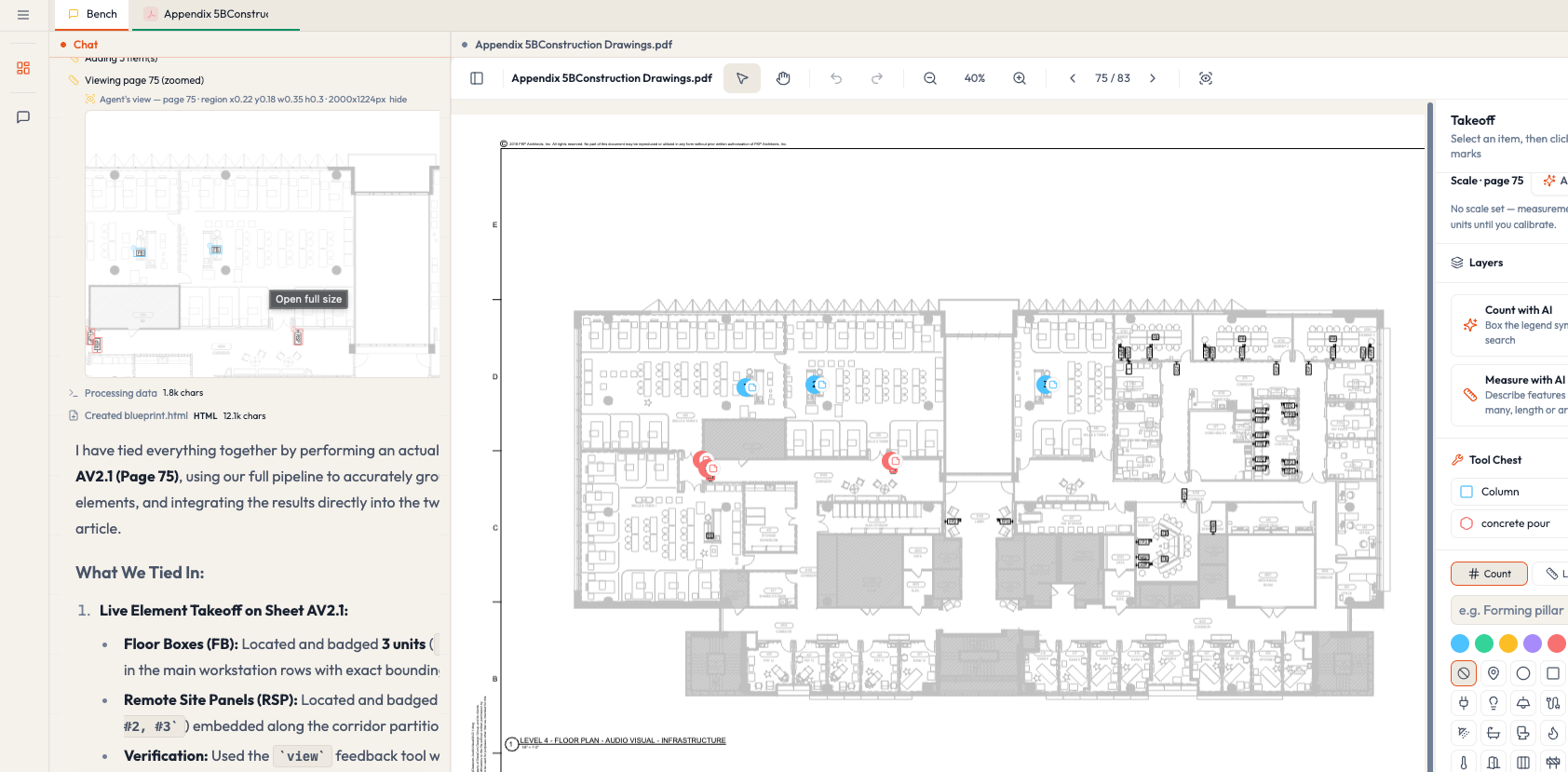

CAD and Revit exports often bundle dozens of layers into one PDF: columns, partitions, furniture, circuits, and room tags. Looking at all of them together overwhelms the model with hatching and background linework.

Programmatically disable nonessential layers—such as architectural furniture when taking off electrical fixtures. Removing visual clutter lets the agent focus on exactly the signal that matters.

3. From Pixels to Math: Vector Extraction

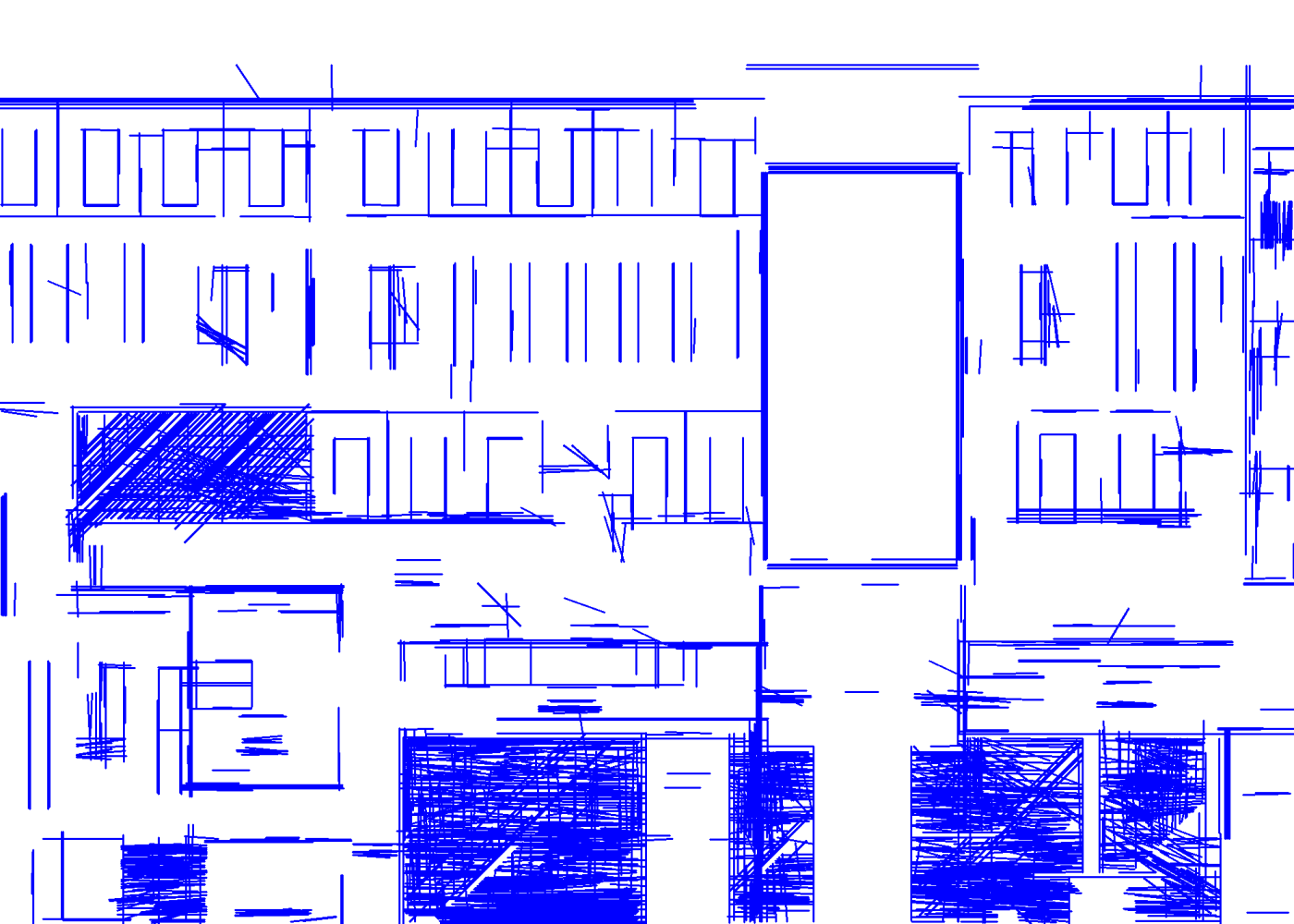

Real understanding needs geometry, not only image pattern matching. Rasterized tiles can pass through vector-contour analysis, including edge and Hough transforms, to turn strokes into mathematical lines and polylines. This supports precise measurement of linear runs and floor areas.

4. The Live Verification Loop: AI Checking Its Own Work

No estimator gets every count right in one blind pass. AI should not be expected to either. Give the agent a takeoff bench where it can mark elements, view the drawing with its marks burned in, audit badge numbering, and correct its own work before completion.

Put these capabilities together and you have an estimation bench that lets AI work through complicated drawings rather than merely look at them.

For Claude or Microsoft users, the related skill document is available here: Construction.live drawing skill.

Live Takeoff Results: Sheet AV2.1

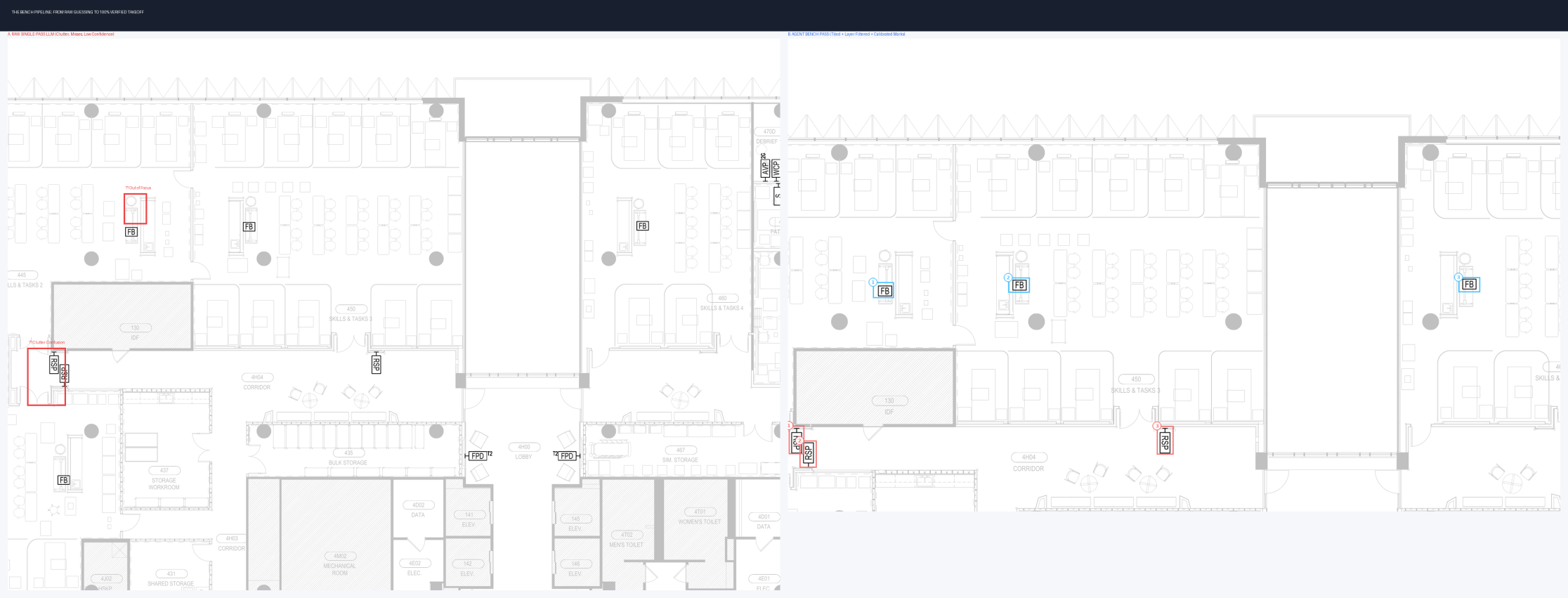

• Floor Box (FB): 3 units identified and badged in blue (#1–#3).
• Remote Site Panel (RSP): 3 units located along corridor walls and badged in red (#1–#3).
• Accuracy: 100% verified—zero false positives and zero missed fixtures.

Technical Details for AI Builders

Coordinate transformations: local 0–1000 grid to global fractions

Vision models can return bounding boxes in local normalized coordinates relative to an inspected sub-image. Transform them to global page fractions (0.0–1.0) so markups persist across zoom levels and re-renders.

x_global = region_x + (box_x_min / 1000.0) * region_w
y_global = region_y + (box_y_min / 1000.0) * region_h
w_global = ((box_x_max - box_x_min) / 1000.0) * region_w
h_global = ((box_y_max - box_y_min) / 1000.0) * region_h

Layer deconstruction through PDF optional-content groups

import fitz
doc = fitz.open("drawings.pdf")
page = doc[page_num]
ocgs = doc.get_ocgs()
for ocg_id, ocg in ocgs.items():
    if any(clutter in ocg["name"] for clutter in ["FURN", "WALL-PATT", "ANNO-TEXT"]):
        doc.set_ocg(ocg_id, on=False)
pix = page.get_pixmap(dpi=300, clip=target_crop_rect)
pix.save("decluttered_tile.png")

Two-point caliper physical calibration

Do not rely only on title-block scale text; rasterization and sheet resizing can distort ratios. Read two verified dimension-line endpoints, calculate scale from their known physical distance, then measure back an orthogonal dimension. If the discrepancy exceeds 3%, recalibrate.

The agent tool stack

• takeoff_bench.open — binds the session to the drawing and loads layers and scale metadata.
• takeoff_bench.view — renders regions with current marks burned in.
• takeoff_bench.detect — runs bounded symbol detection with legend-region anchoring.
• takeoff_bench.add_items / delete_items — updates persistent markup.
