Construction Progress Photos: What to Photograph Before Work Gets Covered

By the time someone asks for proof, the work is already covered.

Concrete has cured over the rebar. Backfill sits on top of the underground utility line. Drywall hides the wall framing and the rough-in behind it. The waterproofing membrane is buried under insulation and sheathing. Whatever was there before is now a guess, not a record.

This is the problem with most construction progress photos. Crews photograph the finished wall, the poured slab, and the completed room. Those photos are useful for updates, but they rarely help when a dispute starts. A photo taken after the work is closed up can't show what was underneath it or how deep the conduit ran. A photo taken before the work was hidden can.

This article covers what to photograph, when to photograph it, and why the timing matters more than the equipment. Think of it as a progress photo checklist for the moments that actually carry weight later, built for general contractors, subcontractors, superintendents, project engineers, and project managers who already take photos and want those photos to hold up when payment, inspections, or a claim depend on them.

Why Construction Progress Photos Matter Beyond Project Updates

Most teams treat photos as a communication tool: a shot of the framing dropped into a weekly update email to the owner. That's a reasonable use, but it's not the most valuable one.

The same photo, taken at the right moment, can also become:

• Payment evidence when a pay application is questioned and the office needs to show percentage complete on a specific date.

• Change order support when a field condition requires extra work and someone later asks why.

• Quality documentation showing that a system was installed to spec before it was covered.

• Dispute records when a subcontractor, owner, or inspector challenges what was actually built.

A photo doesn't have to be labeled "evidence" to function as evidence. It just has to exist, show something specific, and be tied to a date and location. Most construction site photos on a typical phone gallery fail at least one of those three requirements, which is why they don't hold up months later even though the work was, technically, documented.

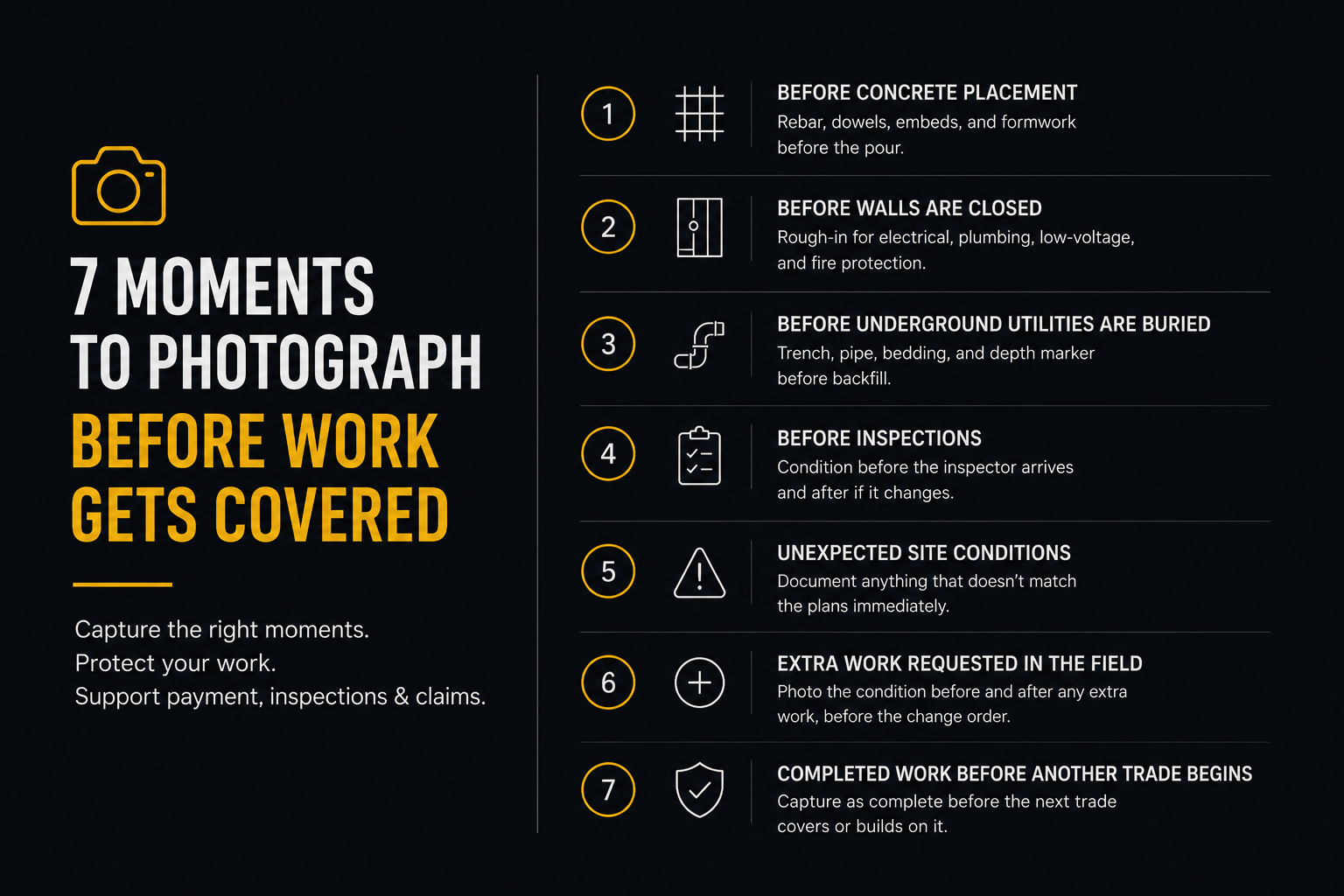

Seven Moments You Should Always Photograph Before the Work Gets Covered

These are the points where evidence disappears permanently once the next trade shows up. If a photo doesn't exist from one of these moments, there's no way to recreate it later.

Before concrete placement

Photograph rebar spacing, dowels, embeds, and formwork before the pour. Once concrete is placed, there's no way to verify bar size or cover without destructive testing. If a structural question comes up in month eight, this photo is the only proof the work matched the drawings.

Before walls are closed

Photograph rough-in for electrical, plumbing, low-voltage, and fire protection before drywall goes up. This is the photo that ends an argument about whether a wall has the blocking an owner asked for, or whether a conduit run matches the as-built location facilities will need years later.

Before underground utilities are buried

Photograph the trench, the pipe, the bedding, and the depth marker before backfill. Underground work is the hardest thing to prove after the fact. A dispute over depth or routing without a photo usually means potholing or excavation to settle it.

Before inspections

Photograph the condition right before the inspector arrives, and again after if anything changes. If an inspection fails and corrective work is needed, this photo shows the exact state the inspector reviewed, which matters if anyone later disputes what was inspected.

Unexpected site conditions

Photograph anything that doesn't match the plans the moment it's found: unmarked utilities, soil conditions, undisclosed existing structure. These photos are the foundation of a differing site conditions claim. Without one taken the day the condition was discovered, the claim is just a description with no proof behind it.

Extra work requested in the field

Photograph the condition before and after any work added verbally in the field, before a change order is written. Verbal direction from an owner's rep or architect is common on active jobsites, and a photo of the before-and-after supports the paperwork that follows, especially if it's delayed.

Completed work before another trade begins

Photograph a scope as complete before the next trade starts covering or building on top of it. This protects your crew from being blamed for damage or defects the following trade actually caused.

What Makes a Progress Photo Useful Six Months Later?

A photo that looks fine on the day it's taken can be useless later if it's missing context. Someone reviewing it months into a dispute wasn't on the jobsite, so good construction progress photography has to explain itself.

A useful photo generally includes:

• A wide shot that shows where the work sits within the room, floor, or site.

• A close-up that shows the specific detail in question, like bar spacing or a connection.

• A reference point, such as a column line or room number, so the location is obvious.

• A timestamp and date, embedded by the camera or app rather than assumed from the file name.

• Multiple angles when the detail could be argued, such as an embed location or a slope.

A single photo of a trench floor proves very little on its own. A wide shot of the trench location, a close-up of the pipe and bedding, and a third photo with a tape measure showing depth, all timestamped the same day, form construction photo records that are much harder to dispute.

Common Construction Photo Documentation Mistakes

Most crews aren't failing to take photos. They're taking photos that don't hold up when someone needs them.

• No location reference, so nobody can tell which room, floor, or section the photo shows.

• No timestamp, so the photo can't be tied to a specific day of work.

• Shot too close, showing a detail with no surrounding context.

• Shot too far, showing a general area with no usable detail.

• No sequence, so there's a photo of the finished wall but nothing from before it was closed.

• Buried in a random phone gallery, disconnected from the daily log or activity it relates to.

Bad example: A single close-up of a pipe fitting, no date visible, no indication of which room it's in, saved in a phone gallery among hundreds of unrelated photos.

Better example: A wide shot of the mechanical room showing the column line, a mid-range shot of the fitting, timestamped automatically and logged against that day's daily report under the correct location tag.

Organizing Progress Photos So the Office Can Actually Use Them

A photo that exists but can't be found is nearly as useless as a photo that was never taken. Organization turns jobsite progress photos into something the office can pull up in ten seconds when an owner asks a question.

At minimum, construction documentation photos should be:

• Sorted by date and location so a specific day and area can be found quickly.

• Tagged by activity, such as rough-in, pour, or backfill, not just by trade.

• Linked to the daily field update from that day, so the photo and the written record support each other.

• Connected to any delay, unexpected condition, or change order they relate to.

When photos live separately from the daily log, someone has to manually match a picture to a date and a story weeks or months later, usually from memory. When photos are tied directly to the field update as they're taken, that matching work is already done.

Why Photos Alone Don't Tell the Whole Story

A photo shows what something looked like. It doesn't explain why the crew was there or what happened right before or after. That context lives in someone's memory, which fades fast on a jobsite running five projects at once.

A photo paired with a short voice update recorded on the spot fills that gap immediately: what's being shown, why it matters, and what happens next. A timestamp confirms exactly when it happened. A daily log ties it to the broader record of the day. On their own, each piece is partial. Together, they form a complete record that holds up whether it's reviewed next week or during a claim eighteen months from now.

This is the workflow Construction.live is built around. It helps field teams capture photos, voice updates, and timestamps together in the moment, so every progress photo already has the context that makes it useful later, without someone having to reconstruct that context after the fact.

What Turns a Construction Progress Photo Into Evidence

A construction progress photo is most valuable when it provides enough context to explain what it shows and where it was taken. To make your photos useful months later:

• Capture both a wide shot and a close-up so the location and the specific detail are visible.

• Include a clear location reference, such as a room number, column line, or grid reference.

• Make sure every photo is timestamped so it can be tied to a specific day of work.

• Take multiple angles when documenting work that could later be questioned, such as embed locations, pipe routing, or waterproofing details.

Conclusion

The best construction progress photos are not the clearest ones. They are the ones that prove what existed before nobody could see it anymore. Concrete gets poured, walls get closed, trenches get backfilled, and once that happens, the only record left is whatever was captured beforehand. Building a habit of photographing those moments, and tying each photo to a date and a location, is what turns a phone full of pictures into documentation that protects payment and holds up when a dispute reaches back into work nobody can see anymore.

Construction.live helps field teams capture photos, voice updates, and timestamps together, making every progress photo more valuable when payment, inspections, or disputes depend on it.

FAQ

What are construction progress photos?

Images taken during a project to document the condition and status of work at a specific point in time. Used well, they serve as evidence for payment applications, change orders, inspections, and disputes, not just as visual updates.

When should construction progress photos be taken?

Before work becomes permanently hidden: before concrete placement, before walls are closed, before underground utilities are backfilled, before inspections, and any time an unexpected condition or field-directed extra work occurs.

What should construction progress photos include?

A wide shot for location context, a close-up of the specific detail, a visible reference point such as a column line or room number, and a timestamp. Multiple angles help when a detail could later be disputed.

Are progress photos enough to support change orders?

They strengthen a change order but work best paired with a written description of what happened and when. A photo combined with a same-day field note or voice update gives the office a complete record instead of an image with no explanation attached.
